PRODUCT

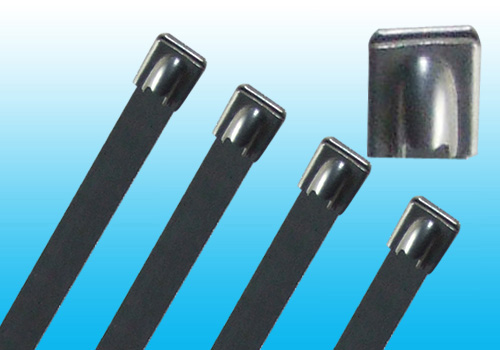

G型卡扣不銹鋼噴塑扎帶
| 規格型號 | 長度 | 寬度 | 厚度 | 捆綁直徑 | 拉力 | |||||
| IN MM | IN MM | IN MM | IN MM | N KG | ||||||
| FZG-5*150 | 5.9 | 150 | 0.197 | 5 | 0.016 | 0.4 | 1.46 | 37 | 550 | 56 |
| FZG-5*200 | 7.9 | 200 | 0.197 | 5 | 0.016 | 0.4 | 1.97 | 50 | 550 | 56 |
| FZG-5*250 | 9.8 | 250 | 0.197 | 5 | 0.016 | 0.4 | 2.48 | 63 | 550 | 56 |
| FZG-5*300 | 11.8 | 300 | 0.197 | 5 | 0.016 | 0.4 | 2.99 | 76 | 550 | 56 |
| FZG-5*350 | 13.8 | 350 | 0.197 | 5 | 0.016 | 0.4 | 3.5 | 89 | 550 | 56 |
| FZG-5*400 | 15.7 | 400 | 0.197 | 5 | 0.016 | 0.4 | 4.02 | 102 | 550 | 56 |
| FZG-5*450 | 17.7 | 450 | 0.197 | 5 | 0.016 | 0.4 | 4.53 | 115 | 550 | 56 |
| FZG-5*500 | 19.7 | 500 | 0.197 | 5 | 0.016 | 0.4 | 5.04 | 128 | 550 | 56 |
| FZG-5*550 | 21.7 | 550 | 0.197 | 5 | 0.016 | 0.4 | 5.55 | 141 | 550 | 56 |
| FZG-5*600 | 23.6 | 600 | 0.197 | 5 | 0.016 | 0.4 | 6.06 | 154 | 550 | 56 |
| FZG-8*150 | 5.9 | 150 | 0.315 | 8 | 0.016 | 0.4 | 1.46 | 37 | 1200 | 122 |
| FZG-8*200 | 7.9 | 200 | 0.315 | 8 | 0.016 | 0.4 | 1.97 | 50 | 1200 | 122 |
| FZG-8*250 | 9.8 | 250 | 0.315 | 8 | 0.016 | 0.4 | 2.48 | 63 | 1200 | 122 |
| FZG-8*300 | 11.8 | 300 | 0.315 | 8 | 0.016 | 0.4 | 2.99 | 76 | 1200 | 122 |
| FZG-8*350 | 13.8 | 350 | 0.315 | 8 | 0.016 | 0.4 | 3.5 | 89 | 1200 | 122 |
| FZG-8*400 | 15.7 | 400 | 0.315 | 8 | 0.016 | 0.4 | 4.02 | 102 | 1200 | 122 |
| FZG-8*450 | 17.7 | 450 | 0.315 | 8 | 0.016 | 0.4 | 4.53 | 115 | 1200 | 122 |
| FZG-8*500 | 19.7 | 500 | 0.315 | 8 | 0.016 | 0.4 | 5.04 | 128 | 1200 | 122 |
| FZG-8*550 | 21.7 | 550 | 0.315 | 8 | 0.016 | 0.4 | 5.55 | 141 | 1200 | 122 |
| FZG-8*600 | 23.6 | 600 | 0.315 | 8 | 0.016 | 0.4 | 6.06 | 154 | 1200 | 122 |
